MCWP range



Mast Climbing Work Platforms

Not all work platforms offer the same

mc4000 best



The ELEVEK by CF work platforms are the ideal complement for those projects of new construction or rehabilitation, of medium and high height in which the use of conventional scaffolding is not practical.

Their use will contribute to your safety and productivity and therefore to cost reduction. With an easy and intuitive operation, they speed up access to the different levels of work.

Robust in its conception and design, it has been considered the most demanding work environments to guarantee its quality and durability.

Our long experience in the execution of all kinds of projects has led us to develop accessories that make it without a doubt one of the most versatile machines on the market.

According to EN 1495 / ANSI A92.9 / CSA B354.9-17

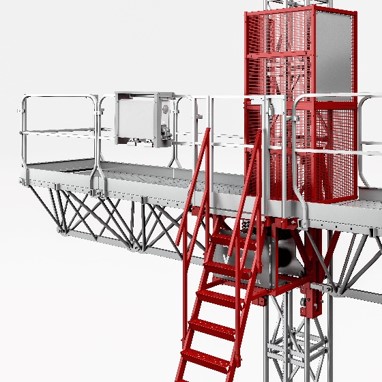

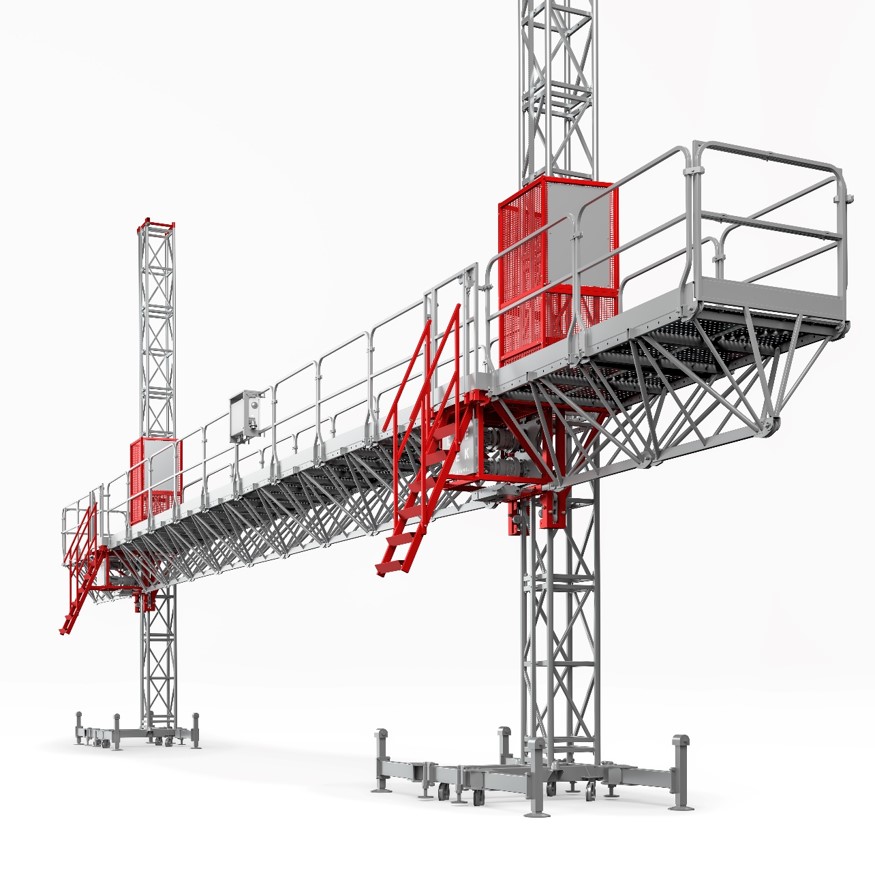

mc4000 2MC4000



Robust, versatile, safe, and easy to handle and maintain.

Global use model that offers the best performance and quality ratio in the range of light and medium load applications.

It has options such as; different types of extensions, solutions with inclination, double platform on the same mast, ...

Scope: 200 m | Maximum load: S-2300 a T-4500 Kg



pdf icon Technical data sheet



Technical data

Model

MC4000

Mast system

M500

Load capacity (material)

S-2300 Kg | T-4500 Kg

Deck Length

13,44 m | 35,88 m

Lifting height

200 m*

(*) for higher values contact us

Lifting speed

8 m/min – 12 m/min

Power supply

400 V
3P+N+PE
50/60 Hz
