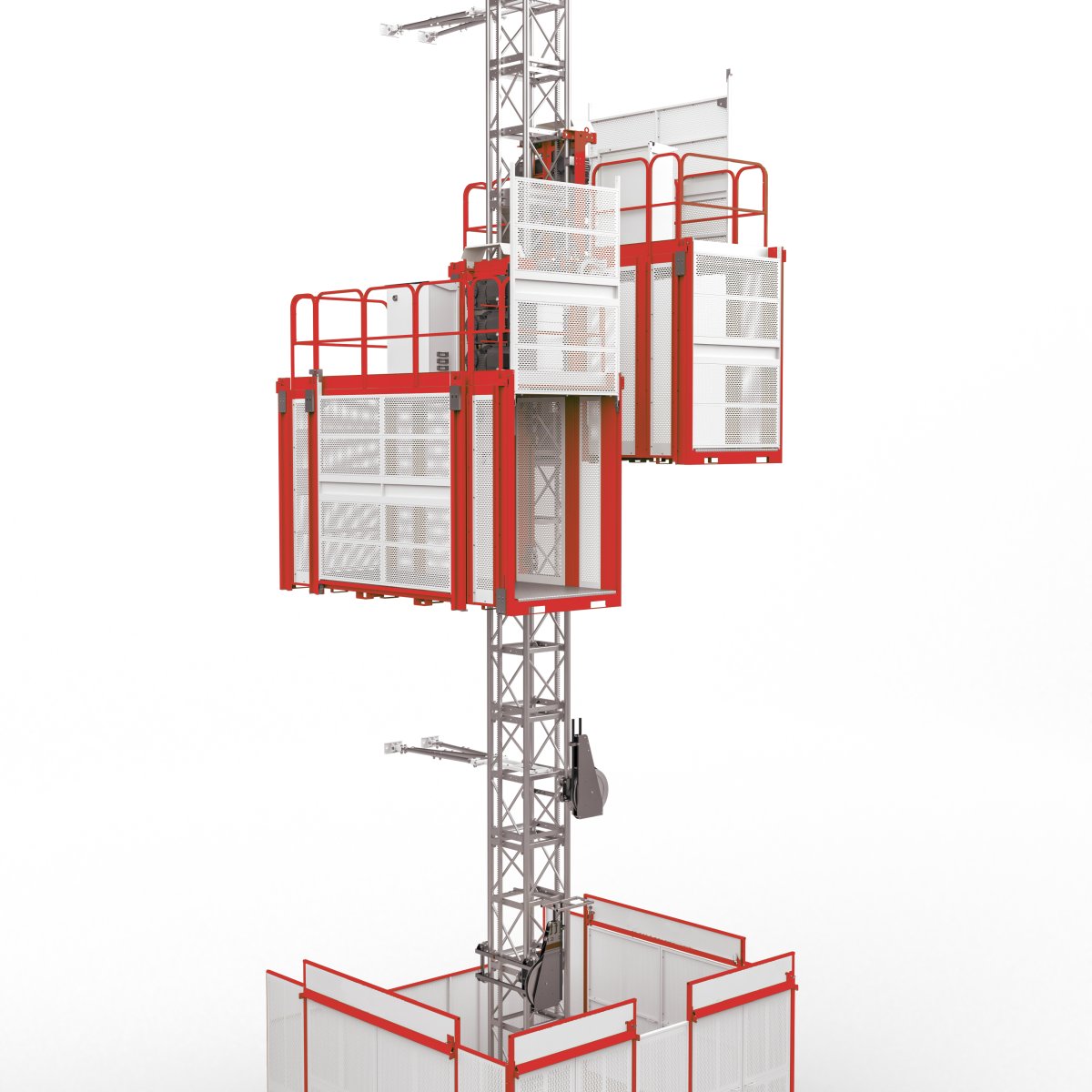

CH 3260
Personnel and Material Hoist
Safety made elevator
The ideal solution for light and medium loads.
The best features in its standard version.
Speed: 40-60 m/min Maximum load: 2000 Kg to 3200 Kg
Technical data sheet
| Technical data | |
|
Model |
CH3260 |
|
Mast system |
M650 |
|
Load capacity (material) |
3200 Kg |
|
Load capacity (persons) |
24/31 |
|
Lifting height |
200 m |
|
Lifting speed |
50/60 m/min |
|
Power supply |
3 x 18,5 kW |
|
Platform dimension |
1,5 m x 3,2/4,2/4,8 m x 2,1 m |
