TP 7M- 1532 S

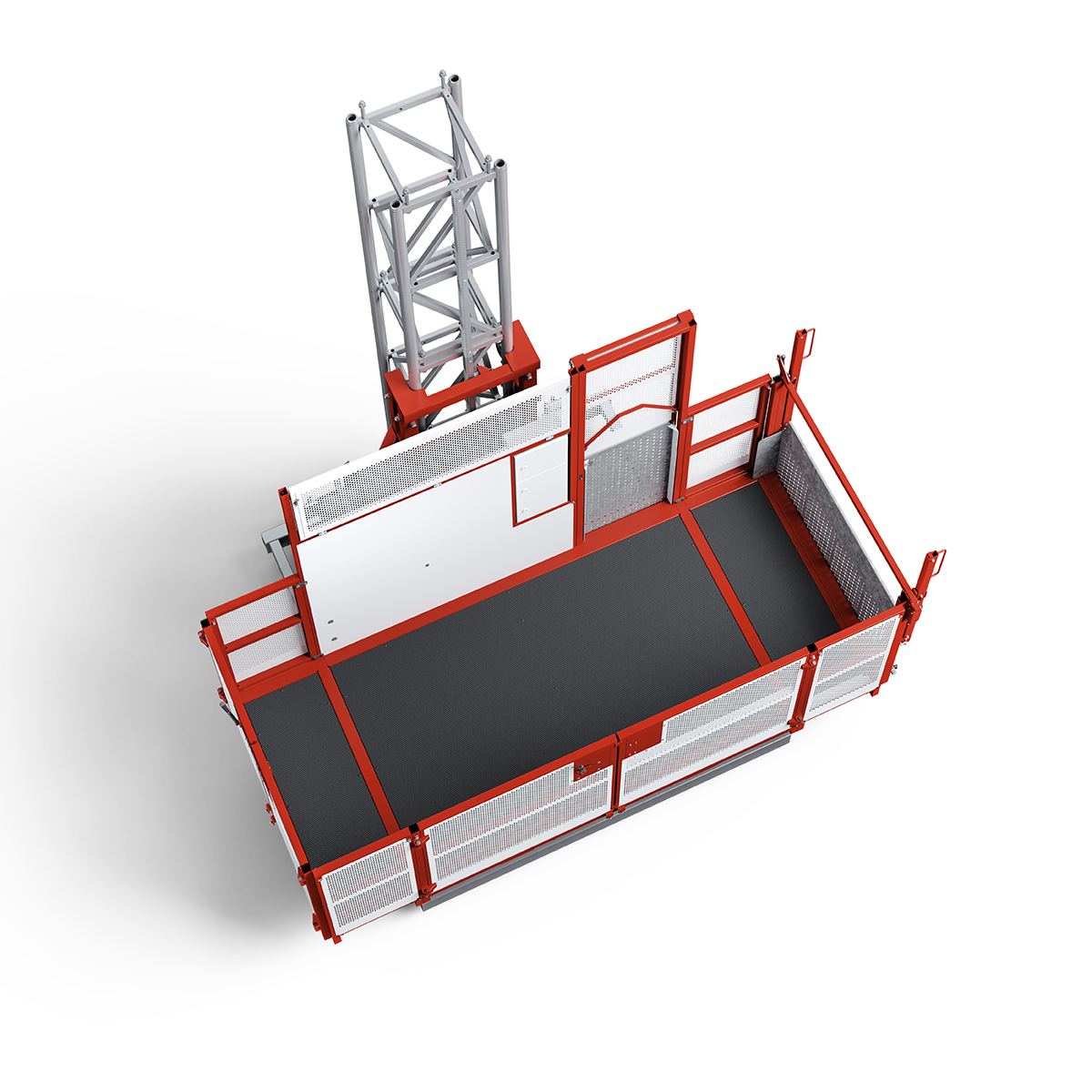

Transport Platform
Efficiency and safety
In addition to modularity, it allows operating in a single or twin configuration.
This provides multiple options by being able to select the appropriate cabin dimensions and load capacity for each project.
Speed: 12-22 m/min | Maximum load: 1500 Kg
Technical data sheet| Technical data | |
|
Model |
TP 7- 1532 S |
|
Mast system |
M500S / M500R |
|
Load capacity (material) |
1500 Kg |
|
Load capacity (persons) |
7 Persons |
|
Lifting height |
150 m |
|
Lifting speed |
12-22 m/min |
|
Power supply |
2 x 5.5 kW |
|
Platform dimension |
0,5+2,2+0,5 m x 1,4 m |
|
Maximum distance between ties |
6 m |
